EPDM foam sheet - OkinRubber

EPDM foam sheet

Description:
1.Open cell foamed sheet, close cell foamed sheet. 2.Material: EPDM 3. OEM service supplied

χ

This item was already in your inquiry basket

Enter inquiry basket now.

  • Product Details

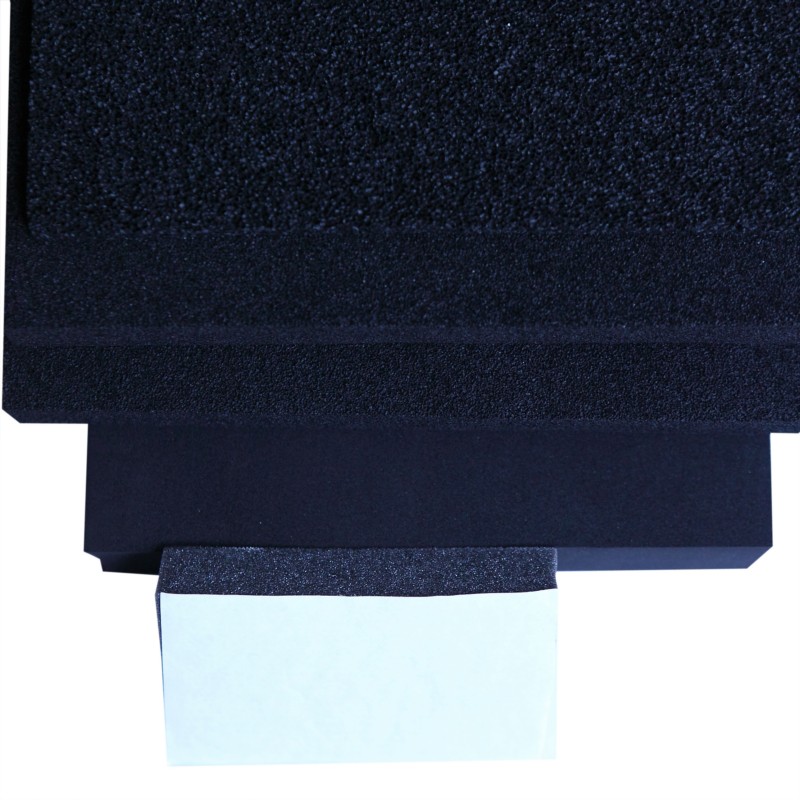

Foamed Rubber Sheet

Our foamed rubber sheets contain open cell foamed rubber sheets and close cell foamed sheets. Foamed rubber sheets include three series depending on different material. There are EPDM series, NBR/PVC series and NBR foamed sheet. Different material is suitable for different use.
EPDM series are divided into 6 kinds, including EDK-15 (Close Cell foamed sheet), EDK-10(Open Cell), EDK-10W (Open Cell) color is white, EDK-10V (Open Cell), EDK-10F (Open Cell), and EDK-20 (Open Cell).
Our company owns a forerunner of the craft technique and machine process an equipments, the product is popular domestic and international market. Have already become EPDM to open to shut a bore product, NBR/PU to open to shut series products, such as the bore product and each kind of color sport mat material...etc. now.
The product has a heat preservation and heat protection, quakeproof, sound absorption and seal completely, obstruct burnable etc. characteristic, extensively applied in the air condition, automobile, construct, instrument appearance, pack, electronics, the athletics sport etc. profession.
Our development is very good. We have the capability to provide you with a lot of different material for foam sheet, such as NBR EPDM NR PU CR range. Besides, we have the RosH & ISO9001 MSDS etc certificate. Our sample can be available before ordering. The sample delivery time is general: about 2-3 weeks. You will place the first order after checked our quality.

EPDM series

  No. EDB-15 (CLOSE CELL)
★ The Most Popular
No. EDB-16 (CLOSE CELL) No. EDK-10 (OPEN CELL)
★ The Most Popular
No. EDK-10W
(OPEN CELL,Inflaming Retarding)
No. EDK-10F
(OPEN CELL, Inflaming Retarding)
No. EDK-20
(OPEN CELL, Big Cell)
No. EDK-10V
(OPEN CELL, Small Cell)
Maximum Size 40x1000
x2000 MM
40x1000
x2000 MM
55x1000
x2000 MM
45x1000
x2000 MM
45x1000
x2000MM
20x700
x3000 MM
45x1000
x2000MM
Density 110-170 KG/M³ 180±10 KG/M³ 80-120 KG/M³ 80-120 KG/M³ 80-120 KG/M³ 60-120 KG/M³ 60-120 KG/M³
Tensile Strength ≥200KPA ≥0.6 MPA ≥50KPA ≥50KPA ≥ 50KPA ≥50KPA ≥50KPA
Elongation ≥150% ≥120% ≥150% ≥150% ≥150% ≥150% ≥150%
Compression Set ≤5.0 ≤8.0 ≤5.0 ≤5.0 ≤5.0 ≤3.0 (25%,23℃,22h) ≤3.0 (25%,23℃,22h)
Inspection Standard SGS SGS SGS SGS SGS SGS SGS
Standard Color BLACK BLACK BLACK WHITE WHITE BLACK BLACK


No. EDB-15 (CLOSE CELL)  The Most Popular
MAXIMUM SIZE: 40x1000x2000 MM
DENSITY: 110-170 KG/M³
TENSILE STRENGTH: ≥ 200KPA
ELONGATION: ≥ 150%
COMPRESSION SET: ≤5.0
INSPECTION STANDARD: SGS
STANDARD COLOR: BLACK

No. EDB-16 (CLOSE CELL)
MAXIMUM SIZE: 40x1000x2000 MM
DENSITY:180±10 KG/M³
TENSILE STRENGTH: ≥ 0.6 MPA
ELONGATION: ≥ 120%
COMPRESSION SET: ≤8.0
INSPECTION STANDARD: JIS
STANDARD COLOR: BLACK

No. EDK-10 (OPEN CELL)  The Most Popular
MAXIMUM SIZE: 55x1000x2000 MM
DENSITY:80-120 KG/M³
TENSILE STRENGTH: ≥ 50KPA
ELONGATION: ≥ 150%
COMPRESSION SET: ≤5.0
INSPECTION STANDARD: SGS
STANDARD COLOR: BLACK

No. EDK-10W (OPEN CELL,Inflaming Retarding)
MAXIMUM SIZE: 45x1000x2000 MM
DENSITY:80-120 KG/M³
TENSILE STRENGTH: ≥ 50KPA
ELONGATION: ≥ 150%
COMPRESSION SET: ≤5.0
INSPECTION STANDARD: SGS
STANDARD COLOR: WHITE

No. EDK-10F (OPEN CELL, Inflaming Retarding)
MAXIMUM SIZE: 45x1000x2000 MM
DENSITY:80-120 KG/M³
TENSILE STRENGTH: ≥ 50KPA
ELONGATION: ≥ 150%
COMPRESSION SET: ≤5.0
INSPECTION STANDARD: SGS
STANDARD COLOR: WHITE

No. EDK-20 (OPEN CELL, Big Cell)
MAXIMUM SIZE: 20x700x3000 MM
DENSITY:60-120 KG/M³
TENSILE STRENGTH: ≥ 50KPA
ELONGATION: ≥ 150%
COMPRESSION SET: ≤3.0 (25%,23℃,22h)
INSPECTION STANDARD: SGS
STANDARD COLOR: BLACK

No. EDK-10V (OPEN CELL, Small Cell)
MAXIMUM SIZE: 45x1000x2000 MM
DENSITY:60-120 KG/M³
TENSILE STRENGTH: ≥ 50KPA
ELONGATION: ≥ 150%
COMPRESSION SET: ≤3.0 (25%,23℃,22h)
INSPECTION STANDARD: SGS
STANDARD COLOR: BLACK
